Not quite Line of Sight Test (869 Mhz LoRa)

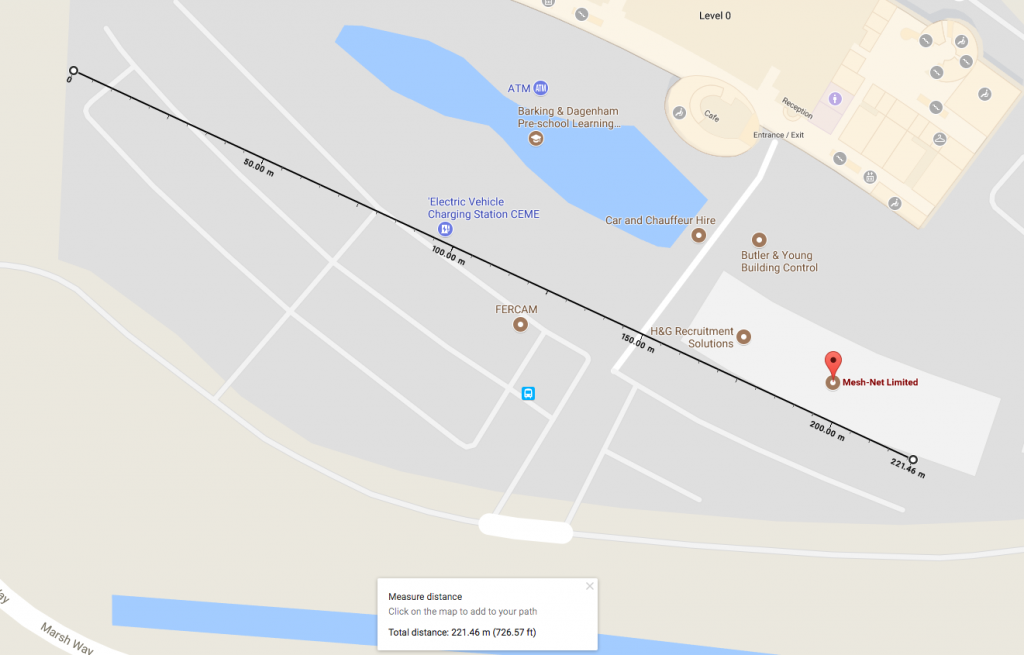

What started off as a Line of Sight (LoS) range test for our LoRa transmitters, soon became not quite LoS as we ran out of room.

So we decided to keep on going…

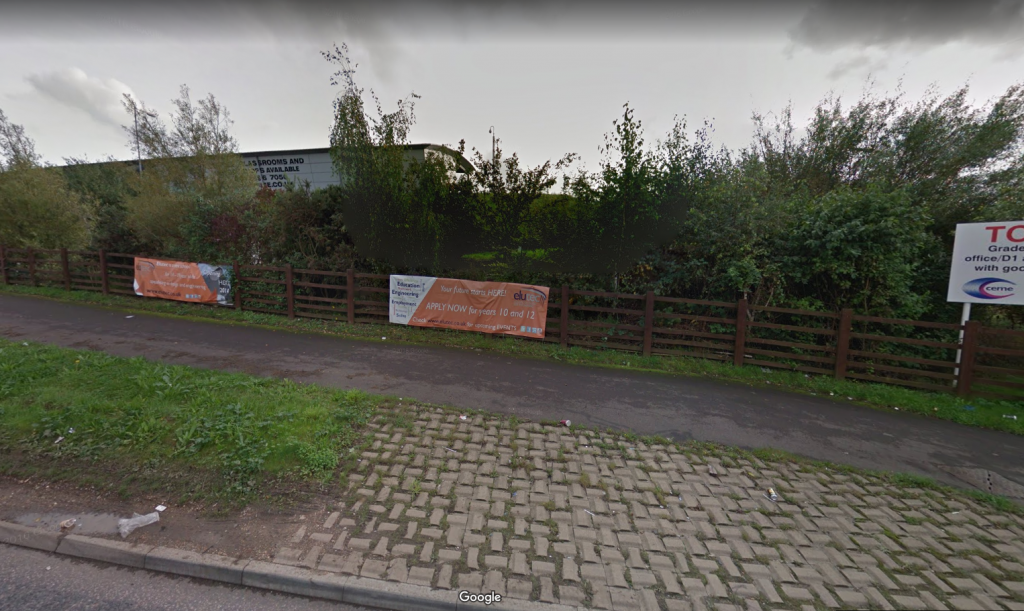

Through bushes – LoRa signal getting through without a problem. ๐Ÿ™‚

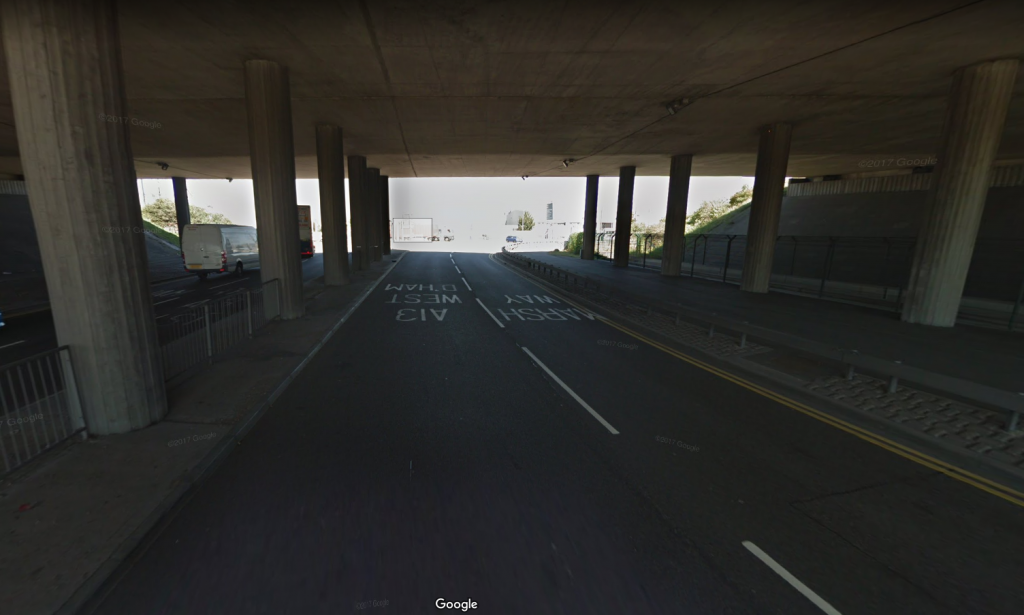

Under the A13 – still working ๐Ÿ™‚

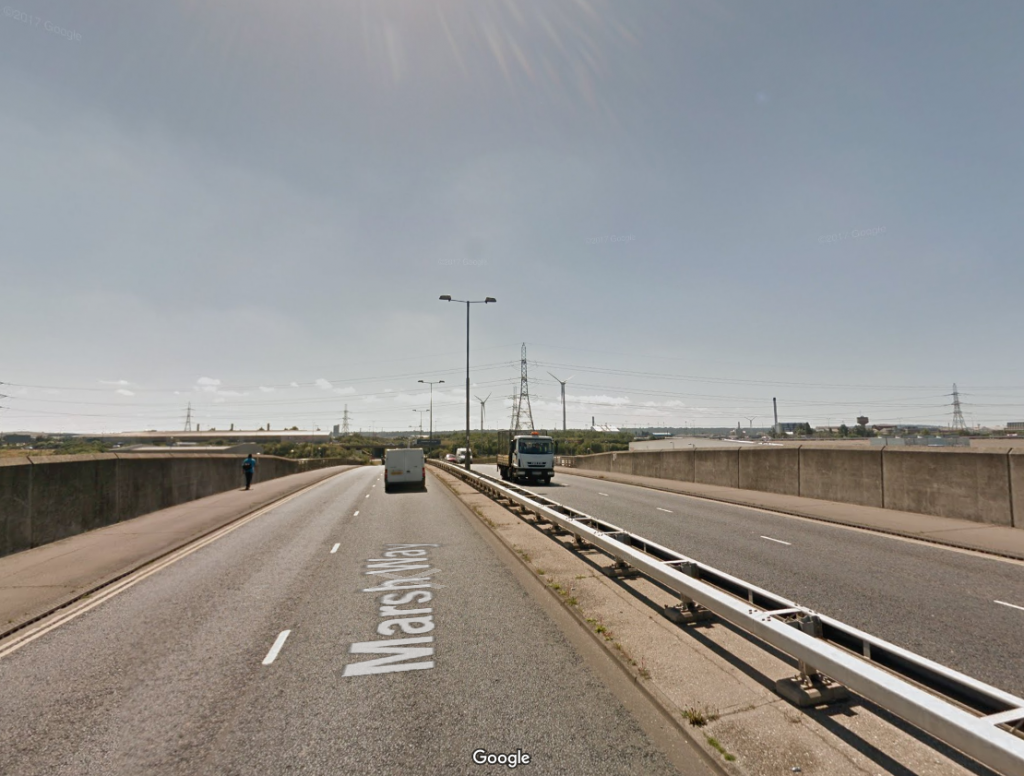

Top of Marsh Way bridge, approximate distance to receiver 600m (not LoS) – still working ๐Ÿ™‚

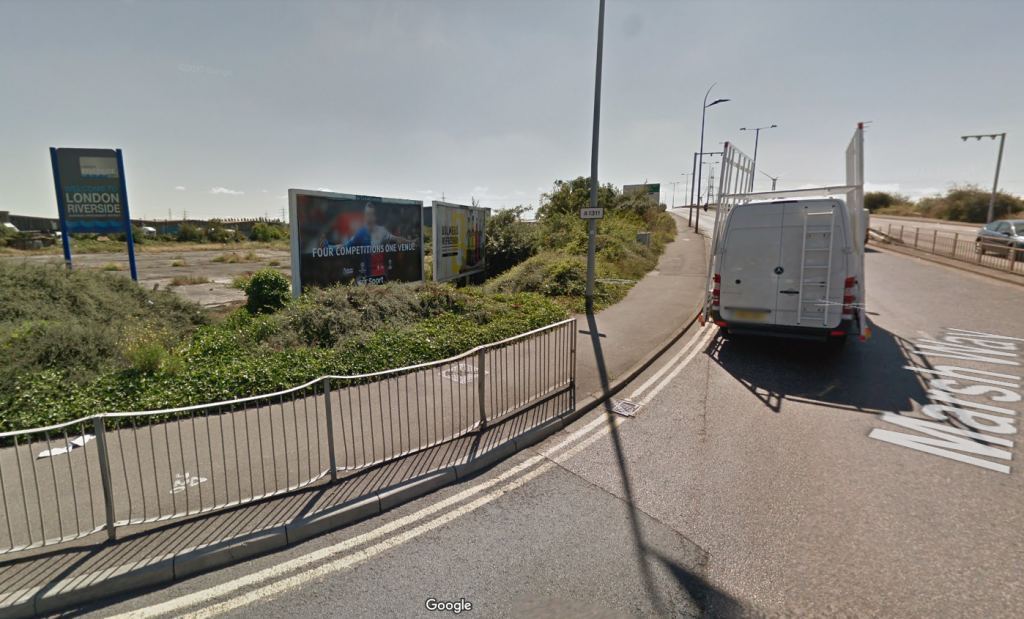

Bottom of Marsh Way bridge, approximate distance to receiver 750m (not quite LoS) – still working ๐Ÿ™‚

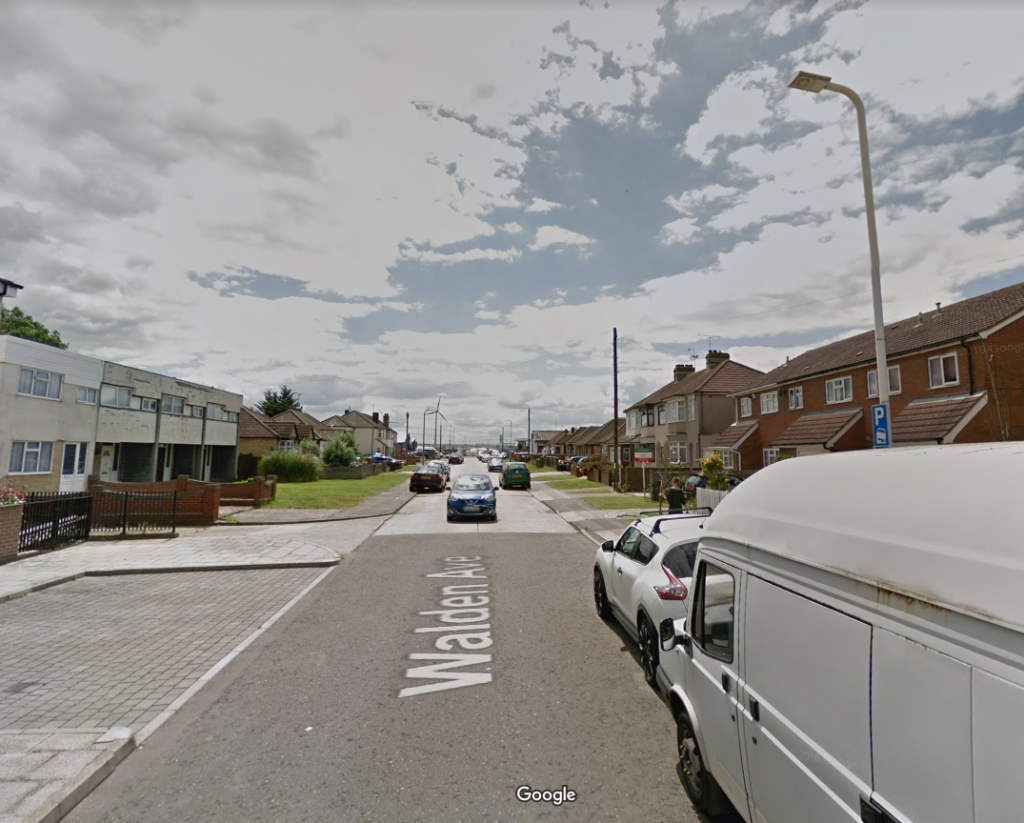

We kept on going until we reached Walden Avenue, now over 1km away from the receiver – and our LoRa transmitter still works! ๐Ÿ™‚

The LoRa transmitter’s RF signal was getting through this built up residential area plus a hill to get back to the receiver at our office. Going further down this road is when we started experiencing signal loss.

Wow, that is some amazing performance from a battery powered transmitter on 869 Mhz.

Want to integrate LoRa / LoRaWAN technology for your sensors?

Would you like advice on what wireless technology best suits your business needs? Talk to us and see how Mesh-Net adds value to your business.
